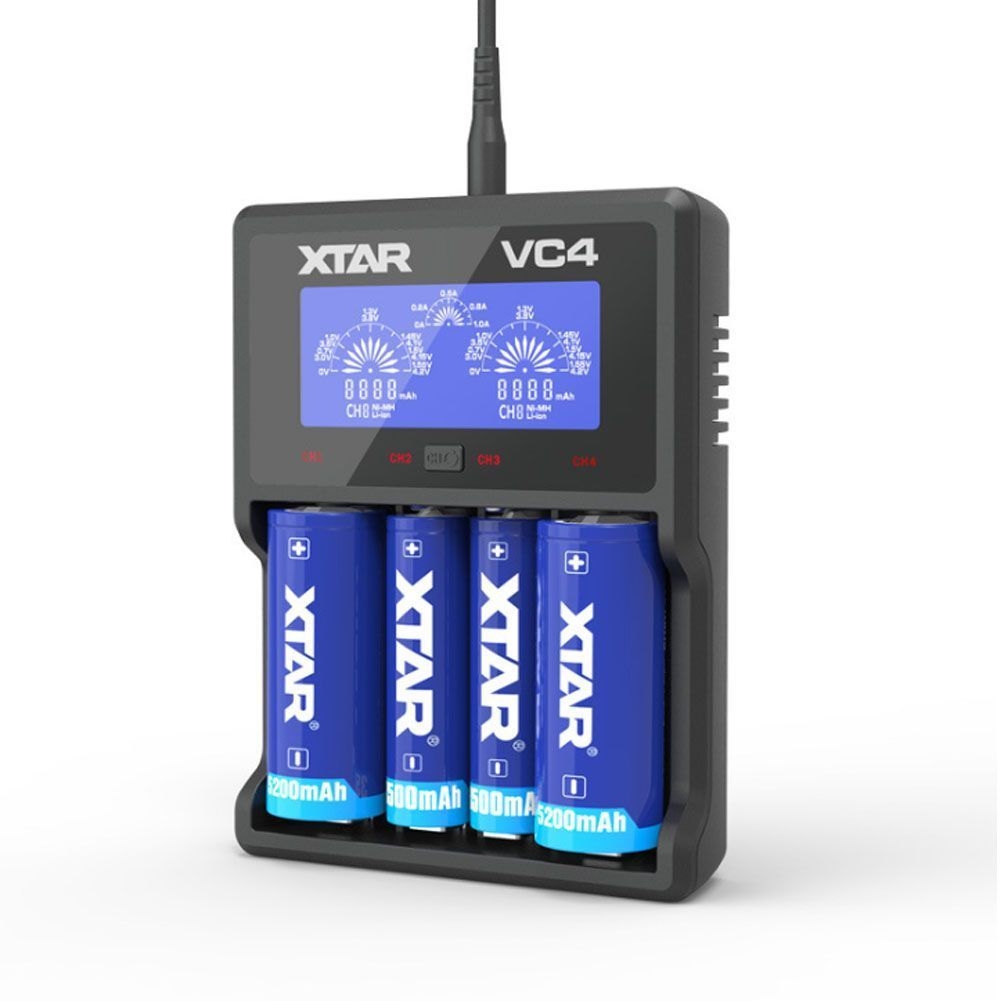

Xtar VC4 Battery Charger

USB powered 1-4 cell intelligent charger with independent charging channels and sliding contacts suitable for LiIon / NiMH batteries in a variety of sizes. Features LCD display, auto battery type recognition, short circuit protection and reverse polarity protection.

Specifications

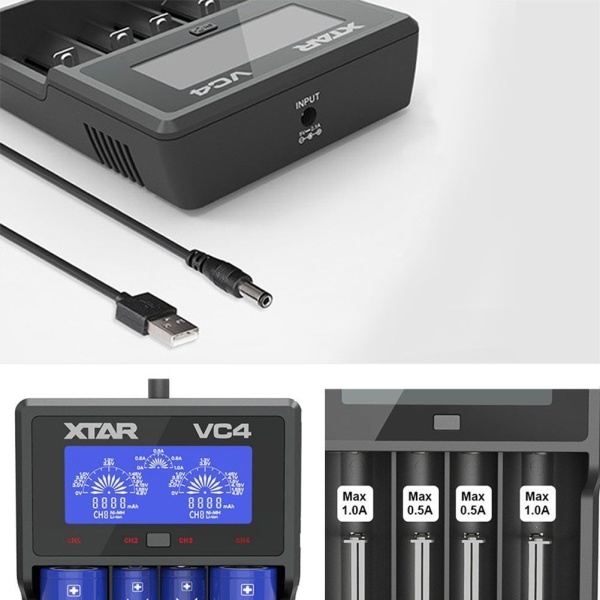

• Input via included USB charging cable.
• Independent channels with high definition LCD screen displays charging current, battery voltage and capacity.
• Intelligently recognise / display / charge NiMH and LiIon batteries at the same time.
• Three-phase charging (TC-CC-CV).
• Automatically adjusts charge current from 0.1A to 1.0A and max up to 0.5A*4 / 1.0A*2.
• Soft start current and automatic shut-off to avoid damaging batteries
• 0V low battery activation.
• Reverse polarity and short circuit protection.
• Accidental insertion of faulty / NiMH batteries are automatically identified and will be displayed as ‘NULL’ on the screen.
• Features reverse polarity protection
• Overheat protection as well as effective heat dissipation design and fire resistant ABS case.
• LED red/green status indicators.

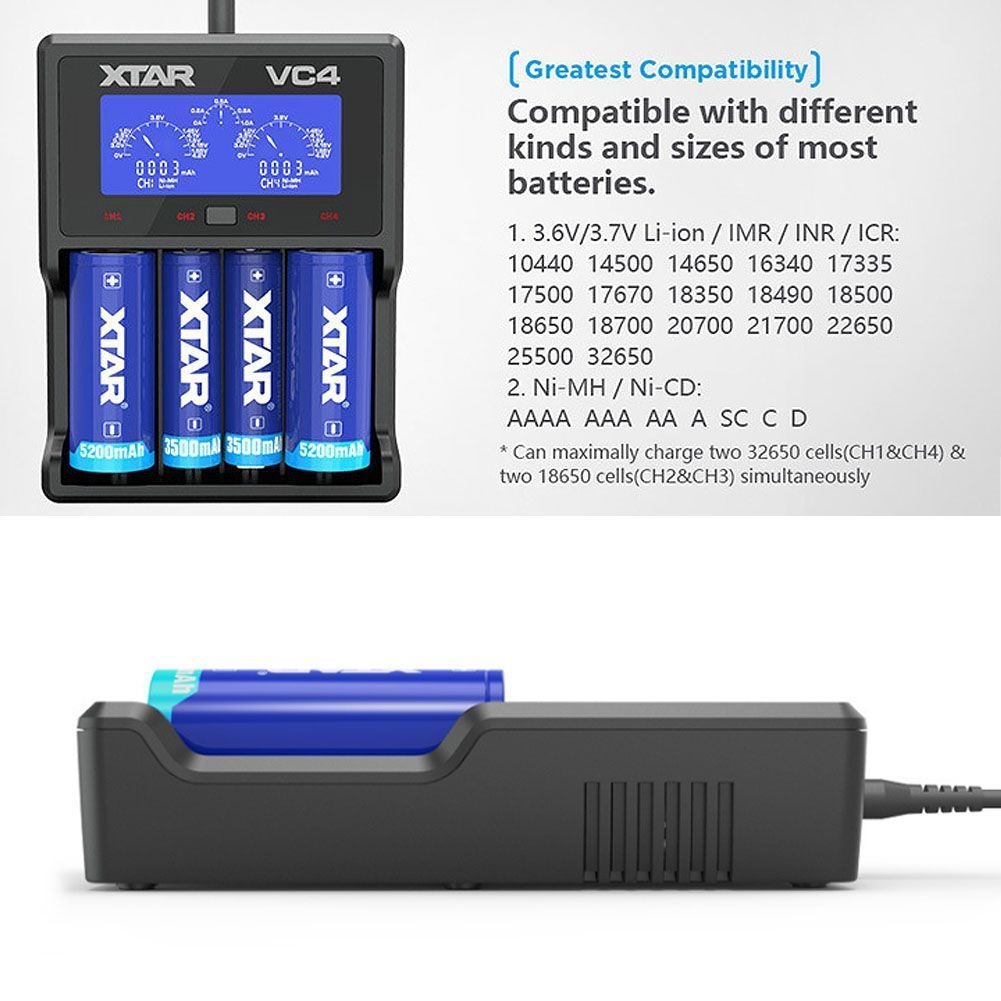

Compatible With

IMR / Li-ion Batteries
• 10440
• 14500
• 14650
• 16340
• 17500
• 17670
• 18350
• 18500
• 18650
• 18700
• 22650
• 25500
• 26550
• 32650

Ni-MH / Ni-Cd
• AA
• AAA
• AAAA
• C
• D
